lot 01


Chronomaster Revival Shadow

This watch was featured at the "Timed Pieces" auction

Starting bid CHF 3 000
Hammer price CHF 6 000
Buy now price CHF 10 000
Total bids 13

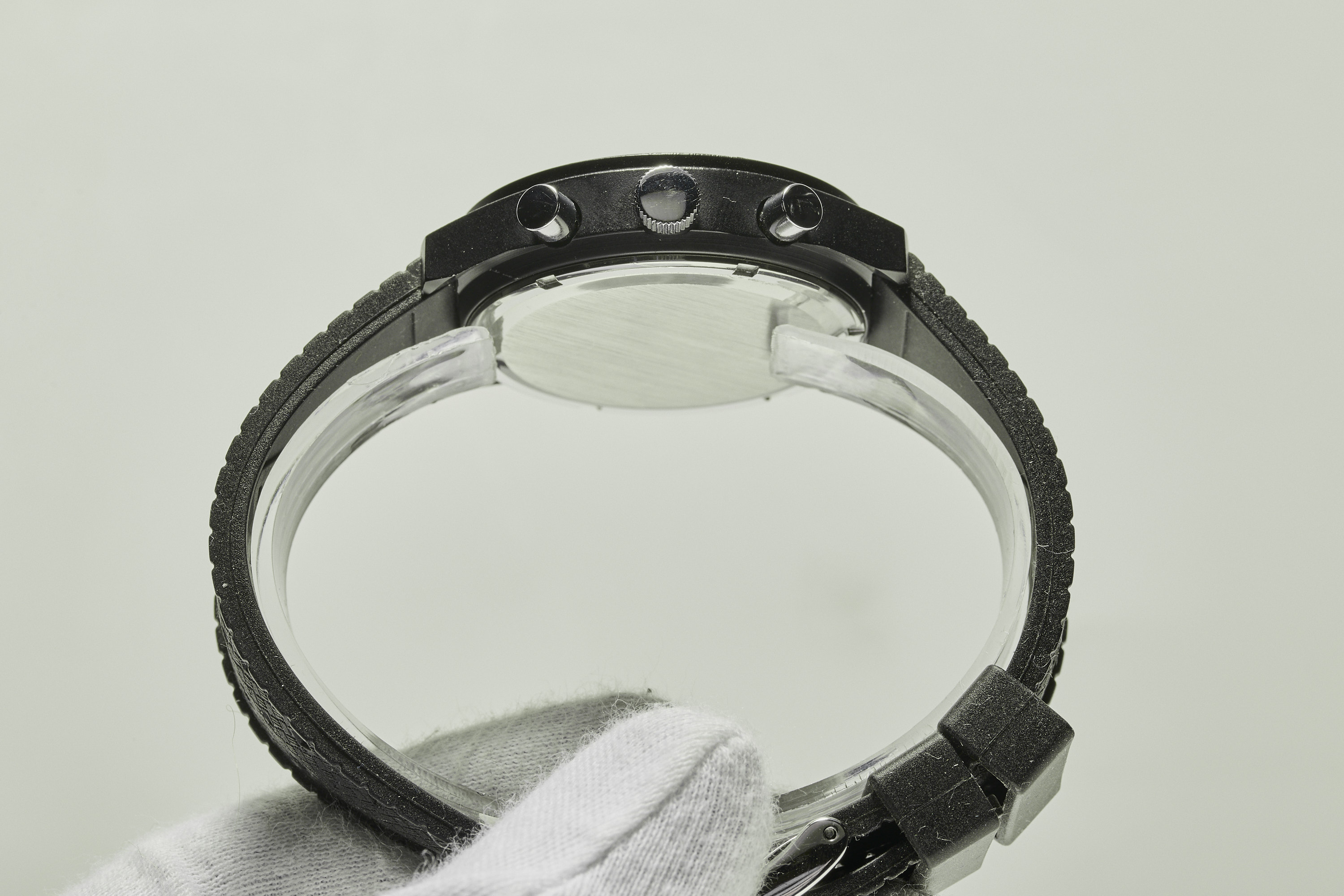

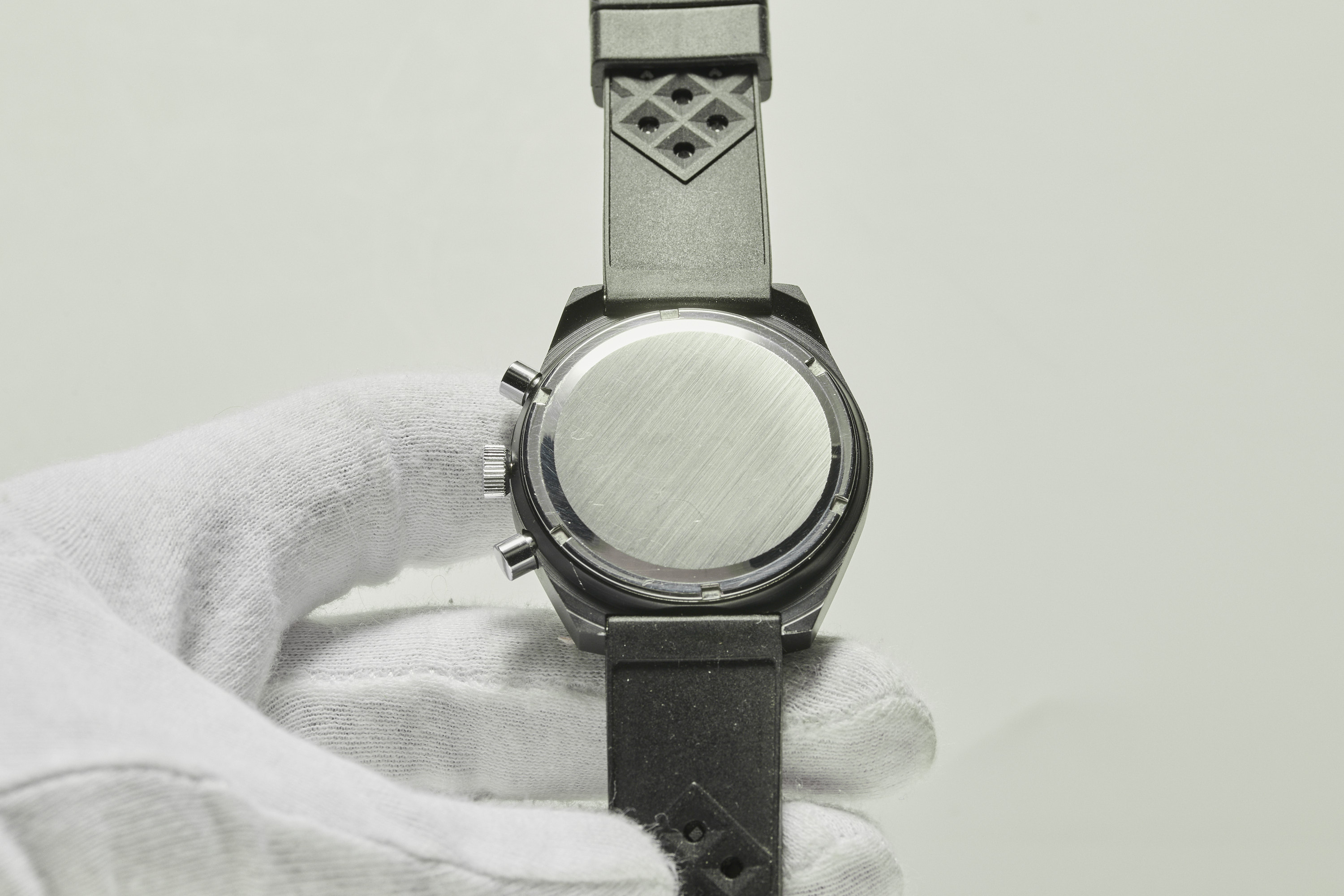

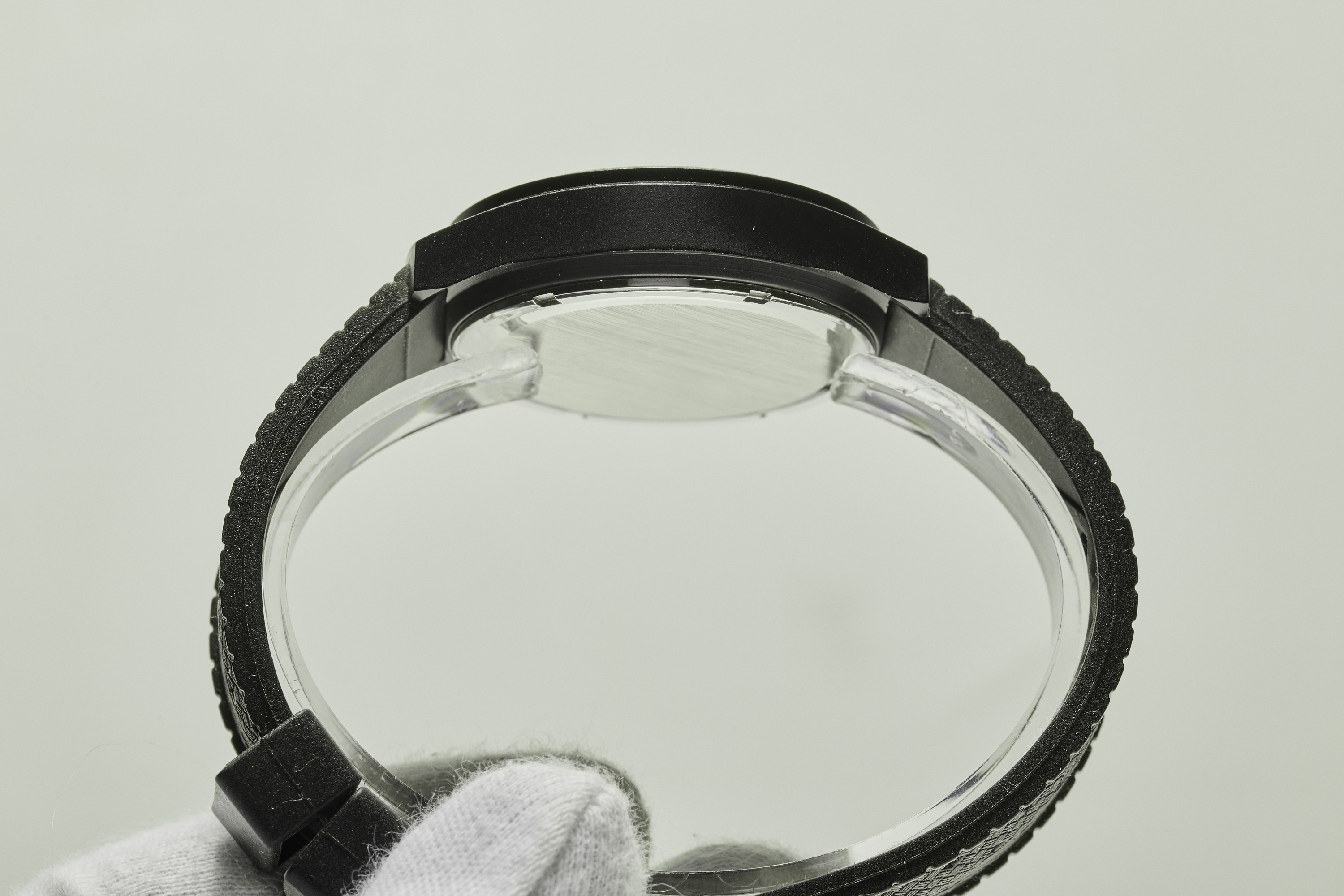

CaseBlack PVD coated case , with a stainless steel caseback, round stainless steel chronograph pushers

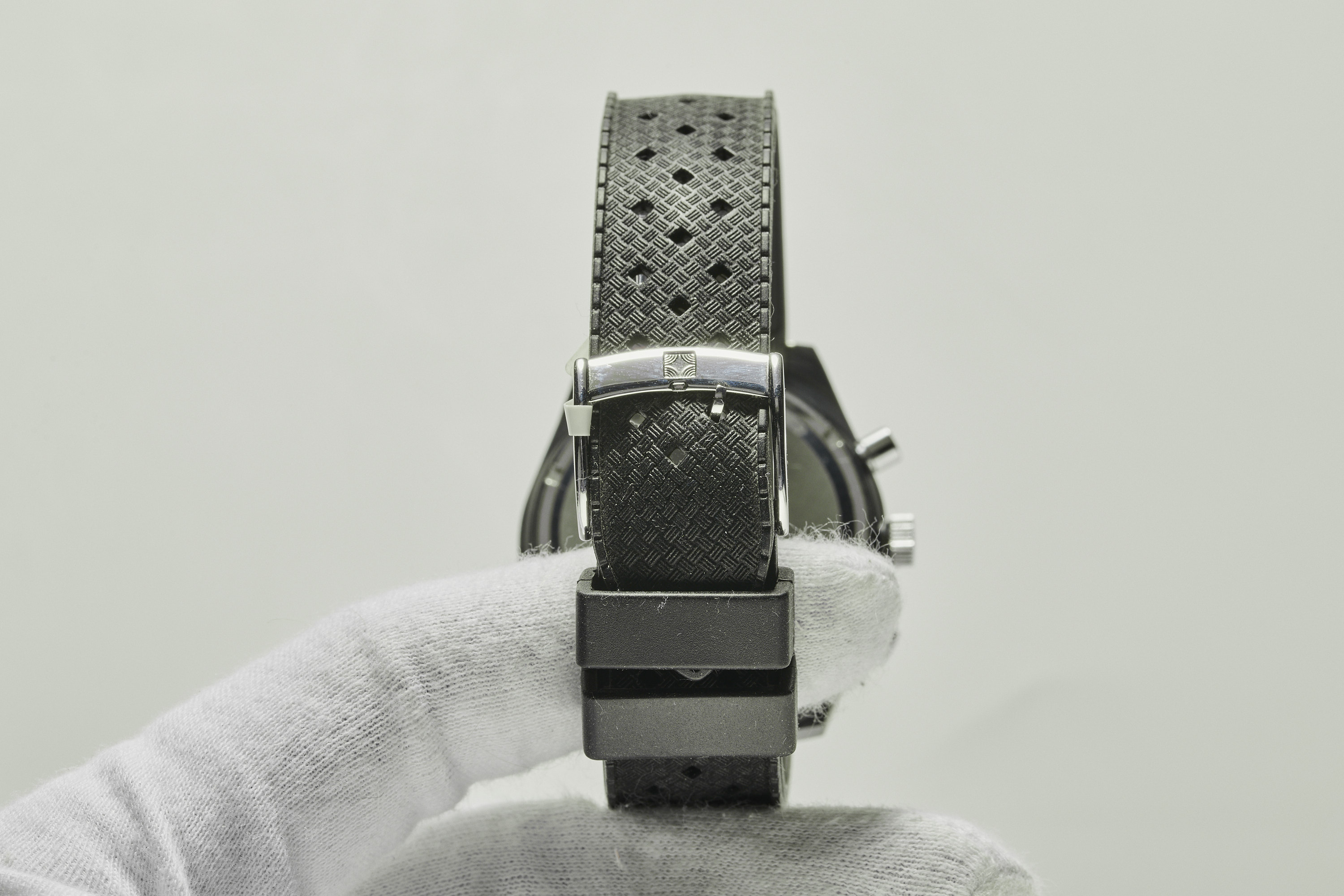

StrapBlack rubber strap, with a original stainless steel pin buckle

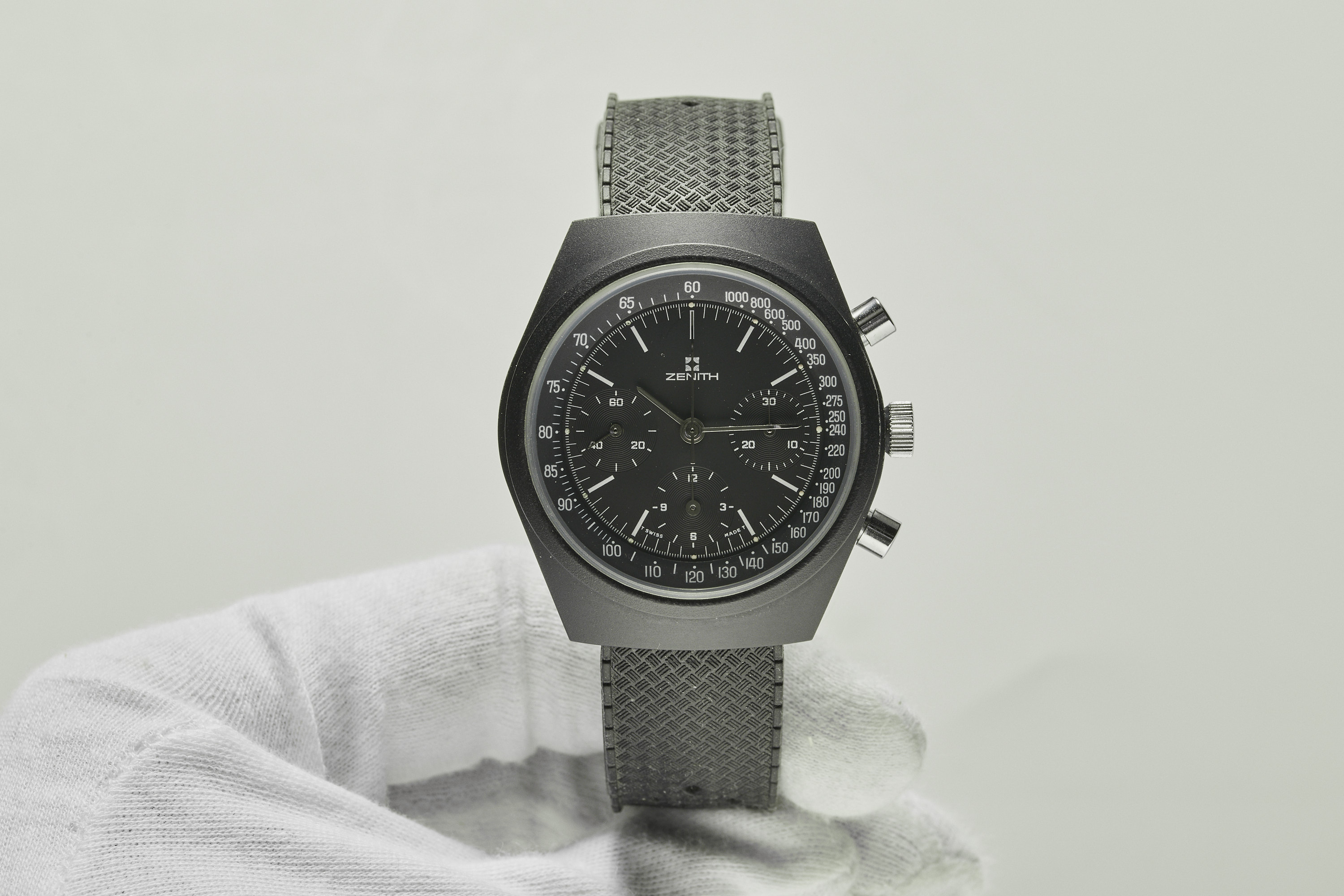

DialBlack dial with luminous hour markers, white Arabic numbers, Tachymeter scale, 3 sub-dials, 30 minutes at 3 o'clock, hour counter at 6 o'clock, small seconds at 9 o'clock, chrome-plated hands
MovementHand-wound chronograph movement, with a column wheel chronograph, simple index with a mobile balance-spring-stud-holder, Glucydur balance wheel with a flat spiral
Cal.146 HP

Condition report

Case:Very good, small signs of wear
Strap:Very good, small signs of wear
Dial:Very good
Movement:All functions working properly
Amplitude (Dial on top/Lift angle 52):Approx 340°
Accuracy (Dial on top):Approx +5 sec/day

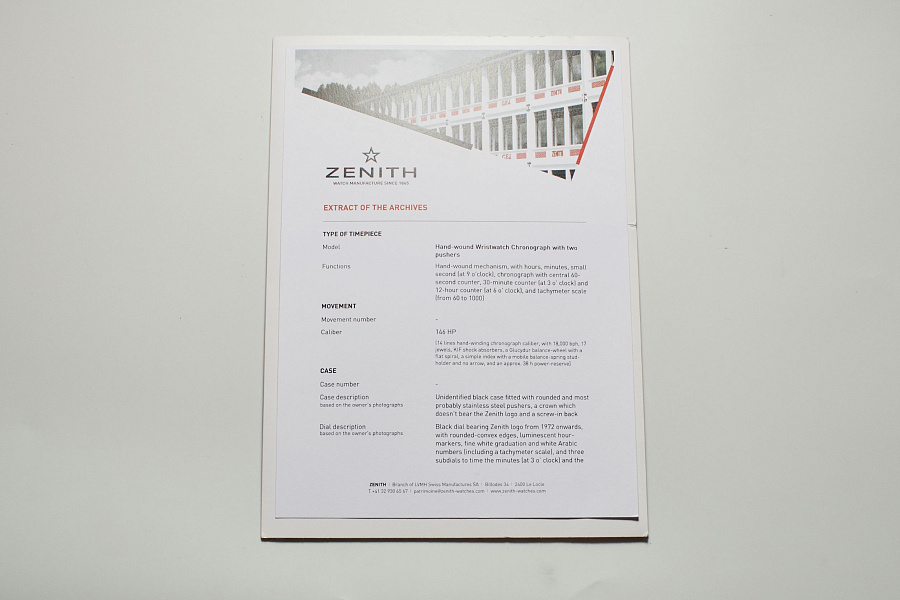

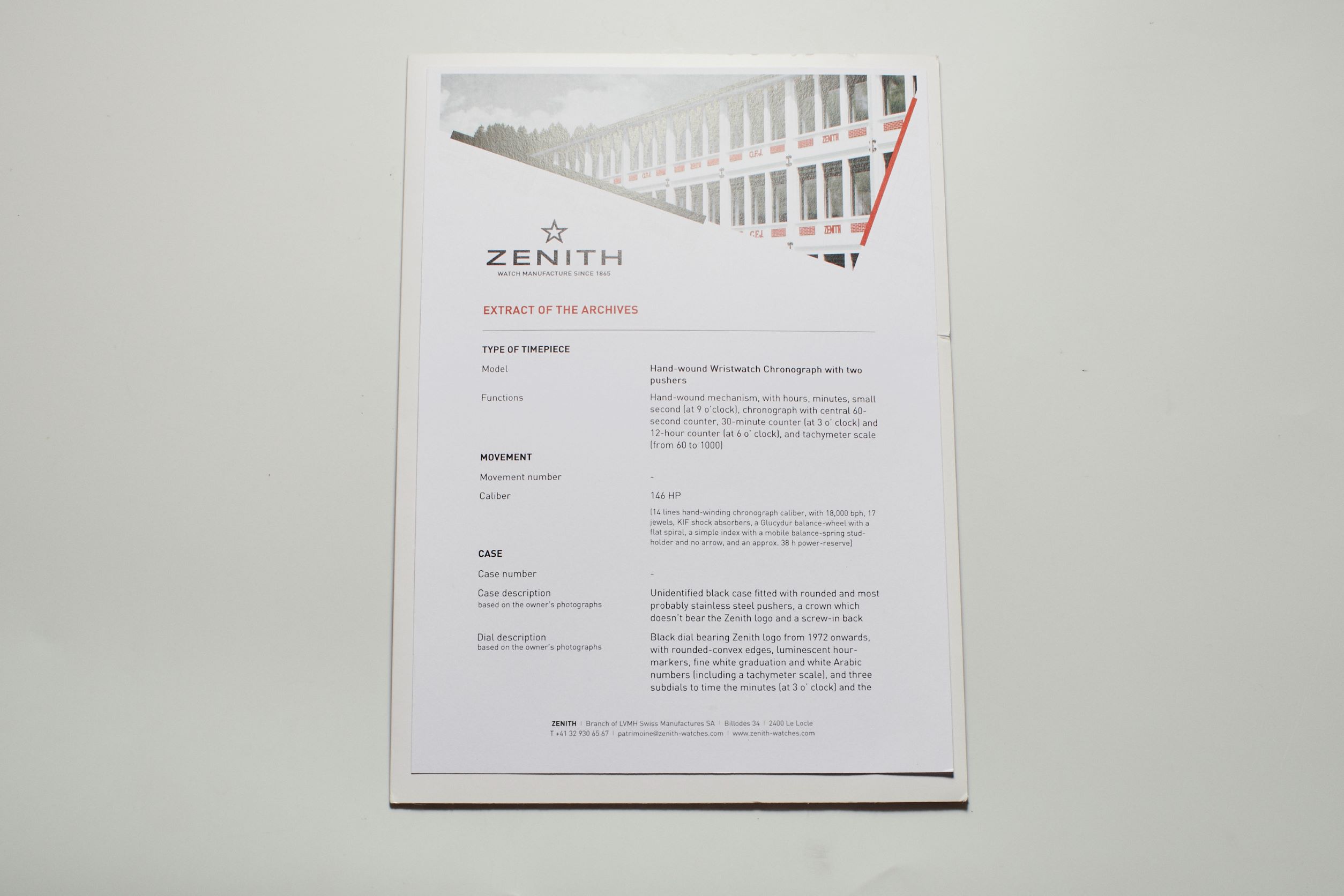

Exctract from archives:Yes

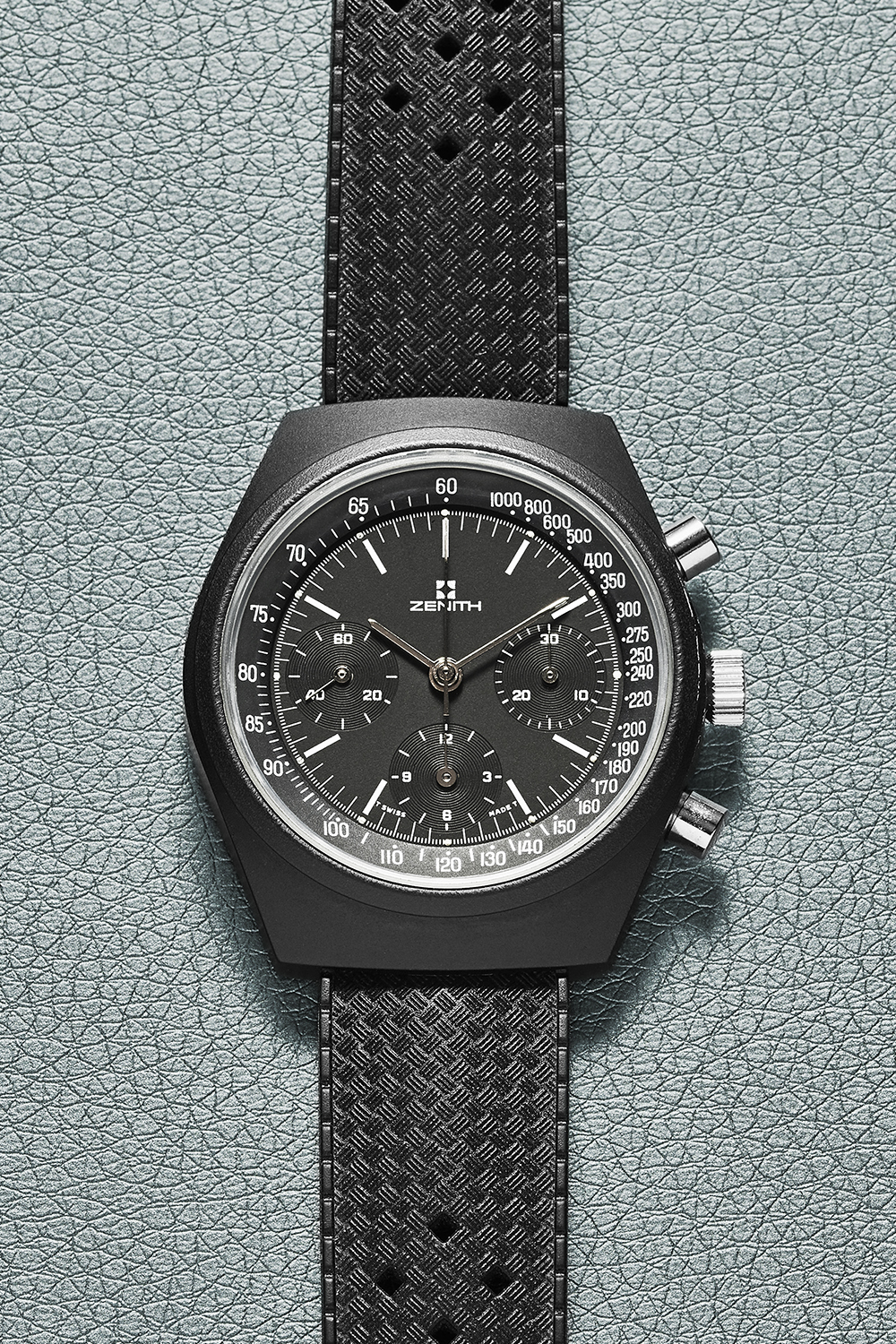

A highly rare, impressive and collectible black PVD-coated chronograph wristwatch prototype of the famous Swiss watch brand Zenith, founded in 1865. Estimated production period: 1972–1980s. Case made of black PVD-coated metal, highly likely stainless steel, diameter 41mm, solid-steel caseback, stainless steel chronograph pushers and winding crown. Matte black dial, sub-dials with fine circular grooves, white markings, dark grey hands, tritium luminous dots in hour index positions, tachymeter scale. Caliber 146HP, hand-wound, column wheel, lateral clutch, flat hairspring. Functions – indication of time in hours and minutes, small seconds at 9 o’clock, chronograph with central seconds hand, 30-minute counter at 3 o’clock and 12-hour counter at 6 o’clock. Black rubber strap, pin buckle.

Lot essay

Zenith, when announcing in 2020 its vintage-inspired Chronomaster Revival ‘Shadow’ watch, drew attention to an unusual and rare vintage timepiece from the brand’s museum collection: “The Chronomaster Revival Shadow mimics the look of an obscure Zenith chronograph prototype from the 1970s that featured a blackened case.” The present example is one of the said ‘obscure Zenith chronographs’, which until then had not aroused the keen interest of connoisseurs. The history of the appearance of this prototype has not yet been clarified in detail. Some features raise questions, in particular the use of the manually wound caliber 146HP, produced by movement maker Martel Watch Co. It is known that Zenith acquired this factory in the late 1950s. Martel, as an industrial division of Zenith, produced this caliber in the 1960s. Then, after developing the self-winding 1969 launch El Primero, they concentrated entirely on its manufacture until 1975, when Zenith made the decision to stop the production of mechanical calibers. However, there were movement remnants in stock at Zenith, including the venerable 146HP, which may have been used in some projects including the release of an all-black prototype chronograph wristwatch with a blackened case, black dial and dark grey ‘ghost’ hands. There is no answer to the question why El Primero was not used in the manufacture of this prototype – though perhaps it is because its cost was higher than that of the 146HP.

The Chronomaster Revival Shadow mimics the look of an obscure Zenith chronograph prototype from the 1970s that featured a blackened case.

The dial of the present example, as well as the dials of a few other examples to have surfaced on the market, is marked with the ‘new’ Zenith logo, making it date back to 1972 – when Zenith changed its logo due to a change of ownership. Most likely, the all-black prototype was produced in the second half of the 1970s, when some Swiss brands showed interest in producing black-coated watches. The lack of serial number markings on the case and the unsigned crown makes the assumption that this was a prototype and not a production watch intended for public sale more justified. It seems an experimental prototype was made in a small pre-production series to test the market’s reaction to this kind of design – a common way of doing things in the industry.

Reasons to bid

The present example seems to be an intriguing artefact to the era of the so-called ‘quartz crisis’, when the brand was looking for as-yet untested, non-standard ways to attract the attention of customers to watches created on the basis of the traditional manual-winding chronograph mechanism, with a column wheel, lateral clutch and a dragging (semi -instantaneous) minute counter. Although this attempt, as we see, was unsuccessful in that era, now this watch is getting a second life, providing collectors and connoisseurs of mechanical chronographs with a great chance to acquire a pioneering watch created in the avant-garde all-black style. Moreover, the Zenith 146HP ‘Shadow’ Chronograph Prototype is undoubtedly recognisable as a classical and traditional Zenith chronograph, featuring a technical and to a certain extent military design, which is typical for the brand. Therefore, it represents a wonderful and intriguing chapter of the outstanding historical watchmaking heritage of Zenith.
